Work Examples

DITA Examples

All four of the following examples are from the same source content, which demonstrates the DITA Implementation Accomplishments including DITA Open Tool Kit, XSLT, XSL-FO, and CSS customizations, as listed in the DITA Implementation Presentation.

Eclipse Infocenter

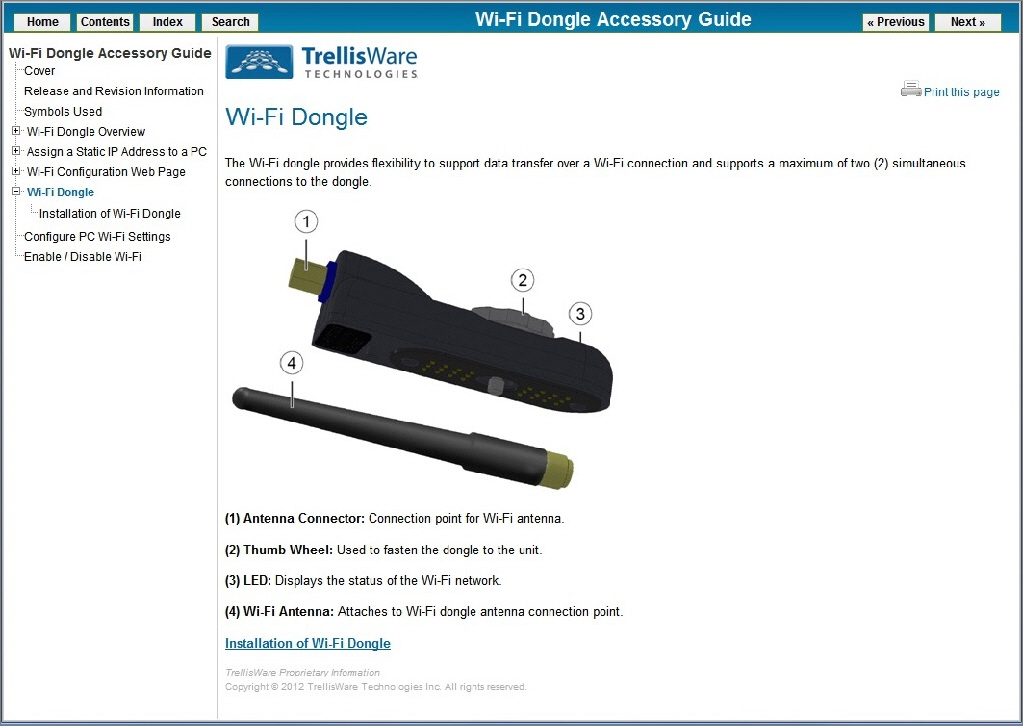

WebHelp

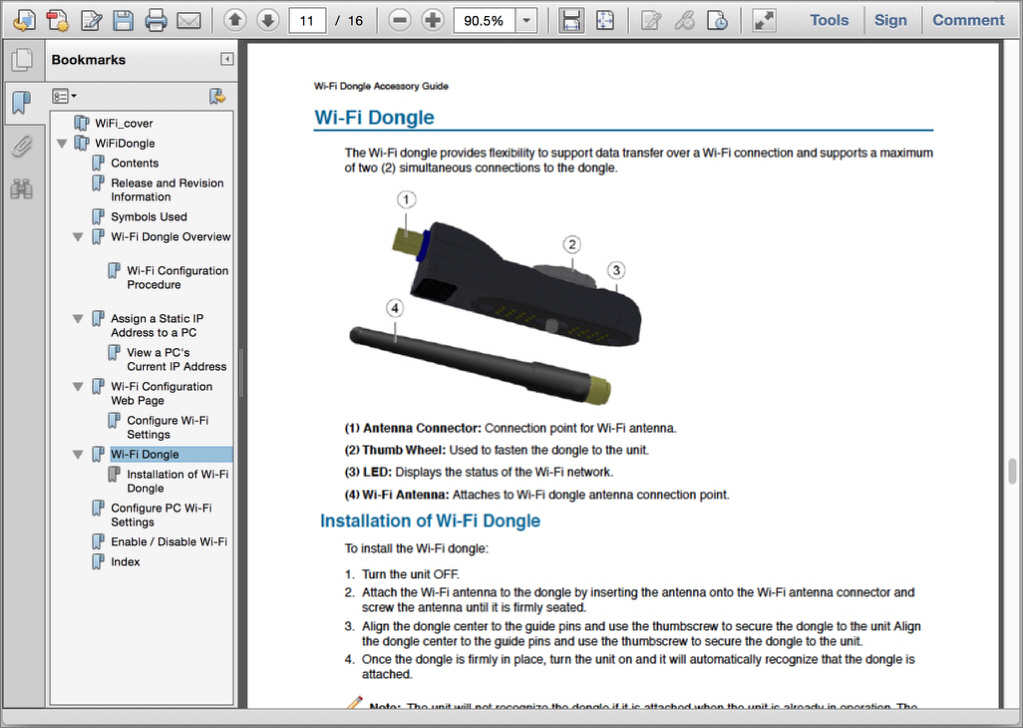

PDF

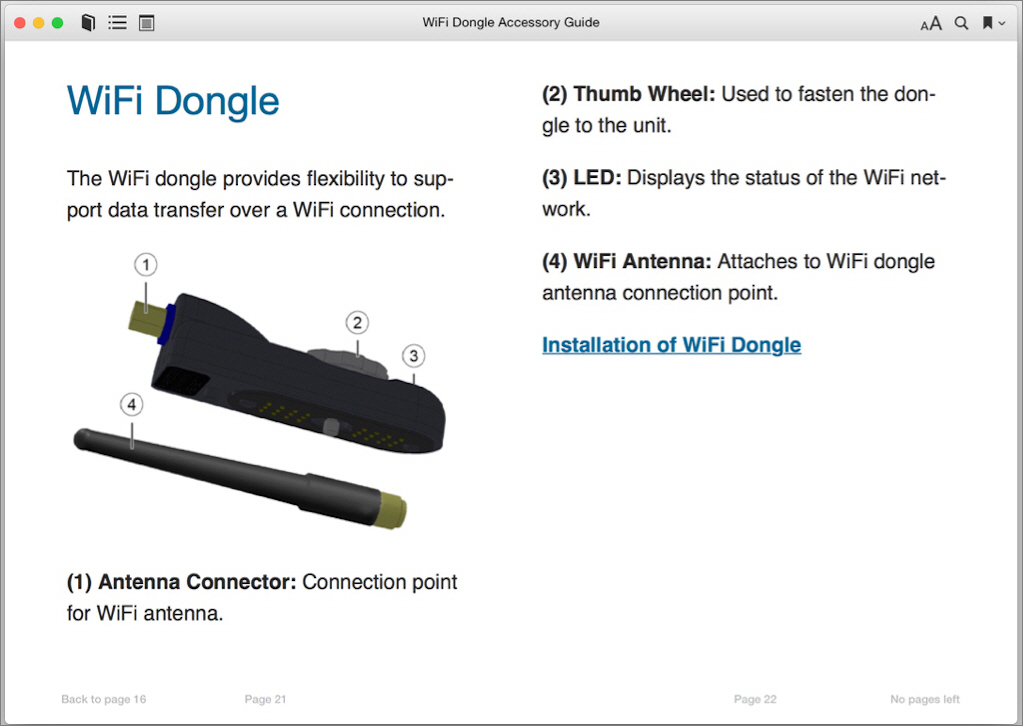

EPUB

Apache Ant Build Script

The following Apache Ant build script, demonstrates how the DITA publishing process can be configured to automate the process to transform DITA XML files, using the DITA Open Toolkit (DITA-OT) and DITA for Publishers plugin, into; Eclipse Infocenter, PDF, and EPUB formats. The script sets property strings, transforms the DITA files, modifies the transformed files, and then publishes the content onto a server. Available on: GitHub repository sdgpalm2 / dita-build-eclipse-pdf-epub.


	<!-- Code Example Created By - Scott Galaba -->

	<?xml version="1.0" encoding="UTF-8" ?>
	<project name="Test-documentation" default="all" basedir=".">
	<!-- set the path location to the DITA-OT -->
	<property name="dita.dir" location="c:/DITA-OT1.7.5"/>
	<!-- set the path location to the ditamap file -->
	<property name="ditamap.dir" location="c:/TestDoc/Source DITA/"/>
	<!-- set the path location to the ditaval file -->
	<property name="ditaval.dir" location="c:/TestDoc/Source DITA/ditaval/"/>
	<!-- set the path location to the css and footer files -->
	<property name="ditacss.dir" location="c:/TestDoc/Source DITA/Styles/"/>
	<!-- set the path location to the icons used with notes -->
	<property name="ditaicons.dir" location="c:/TestDoc/Source DITA/Images/Icons/"/>
	<!-- set the path location for the generated eclipse output -->
	<property name="ditaoutput.dir" location="c:/DITAOT/out/eclipse/"/>
	<!-- set the path location for the generated pdf output -->
	<property name="ditaoutputpdf.dir" location="c:/DITAOT/out/pdfs/"/>
	<!-- set the path to the Eclipse Inforcenter Plugin Location -->
	<property name="ditainfocenter.dir" location="c:/InfocenterTestDoc/eclipse/plugins/"/>

	<!-- DITA Customization to use -->
	<property name="ditacustomization" value="c:/DITA-OT1.7.5/plugins/org.dita.pdf2/Customization"/>

	<!-- DITA Map file to use -->
	<property name="ditamapfile" value="BigFiDongle.ditamap"/>
	<!-- DITA Val file to use -->
	<property name="ditavalfile" value="BigFiDongle.ditaval"/>
	<!-- DITA Val file to use for PDF -->
	<property name="ditavalfilepdf" value="BigFiDonglepdf.ditaval"/>
	<!-- DITA footer file to use -->
	<property name="ditafooterfile" value="custom-ftr.html"/>
	<!-- DITA css file to use -->
	<property name="ditacssfile" value="TestDoc_commonltr.css"/>
	<!-- Specific Eclipse Infocenter Plugin Directory Name to use for the above stated ditamap file -->
	<property name="plugindirname" value="BigFi"/>
	<!-- pdf file name -->
	<property name="ditapdffilename" value="BigFiDongle.pdf"/>
	<!-- epub file name -->
	<property name="ditaepubfilename" value="BigFiDongle"/>
	<!-- DITA Val file to use for epub -->
	<property name="ditavalfileepub" value="BigFiDongleepub.ditaval"/>
	<!-- epub css file to use -->
	<property name="ditacssfileepub" value="TestDocEpub_commonltr.css"/>
	<!-- set the path location for the generated epub output -->
	<property name="ditaoutputepub.dir" location="c:/DITAOT/out/epub/"/>
	<!-- set the path and file for epub cover graphic -->
	<property name="epubcovergrahpicfile" location="c:/TestDoc/Source DITA/Images/Dongles/BigFi_cover_front_760.jpg"/>

	<!-- Clean out the eclipse and epub build directory before starting a new build -->
	<delete dir="${ditaoutput.dir}\${plugindirname}"/>
	<delete dir="${ditaoutputepub.dir}\${plugindirname}"/>
	<!-- Clear out the Infocenter directory before starting a new build -->
	<delete dir="${ditainfocenter.dir}\${plugindirname}"/>

	<!-- set build script to both an eclipsehelp, pdf, and epub outputs -->
	<target name="all" description="build eclipse, pdf, and epub" depends="eclipse,pdf,epub"/>

	<!-- good eclipse build script -->
	<target name="eclipse" description="build Eclipse">
		<ant antfile="${dita.dir}\build.xml">
			<!-- set the build type to eclipsehelp -->
			<property name="transtype" value="eclipsehelp"/>
			<!-- set the ditamap file to use -->
			<property name="args.input" value="${ditamap.dir}\${ditamapfile}"/>
			<!-- set the conditional text settings file to use -->
			<property name="dita.input.valfile" value="${ditaval.dir}\${ditavalfile}"/>
			<!-- set the footer file to use -->
			<property name="args.ftr" value="${ditacss.dir}\${ditafooterfile}"/>
			<!-- set the css file and path statements -->
			<property name="args.css" value="${ditacssfile}"/>
			<property name="args.cssroot" value="${ditacss.dir}"/>
			<!-- set create index file to yes -->
			<property name="args.indexshow" value="YES"/>
			<!-- set the symbolic name (aka plugin id) of the plugin to be produced, overrides the @id value in the ditamap -->
			<!-- set output directory location -->
			<property name="output.dir" value="${ditaoutput.dir}\${plugindirname}"/>
			<!-- clear out temp location -->
			<property name="clean.temp" value="yes"/>
		</ant>
		<!-- force copy of css file due to bug in dita-OT -->
		<copy file="${ditacss.dir}\TestDoc_commonltr.css" todir="${ditaoutput.dir}\${plugindirname}" overwrite="true"/>
		<!-- force copy of background icon note images -->
		<copy file="${ditaicons.dir}\caution_20.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<copy file="${ditaicons.dir}\danger_20.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<copy file="${ditaicons.dir}\important_20.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<copy file="${ditaicons.dir}\note_20.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<copy file="${ditaicons.dir}\tip_20.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<copy file="${ditaicons.dir}\tw_icon.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<copy file="${ditaicons.dir}\warning_20.jpg" todir="${ditaoutput.dir}\${plugindirname}\Images\Icons" overwrite="true"/>
		<!-- Copy eclipsehelp output files (the "plugin") to the Eclipse Inforcenter plugins folder -->
		<copy todir="${ditainfocenter.dir}\${plugindirname}">
		<fileset dir="${ditaoutput.dir}\${plugindirname}"/>
  		</copy>
	</target>

	<!-- Good pdf build scripot -->
	<target name="pdf" description="build PDF">
        <ant antfile="${dita.dir}\build.xml">
        	<!-- set the build type to pdf2 -->
        	<property name="transtype" value="pdf2"/>
        	<!-- the ditamap file to use -->
        	<property name="args.input" value="${ditamap.dir}\${ditamapfile}"/>
        	<!-- the conditional text setting file to use -->
        	<property name="dita.input.valfile" value="${ditaval.dir}\${ditavalfilepdf}"/>
        	<!-- Customization to use -->
        	<property name="customization.dir" value="${ditacustomization}"/>
        	<!-- display task lables in topics -->
        	<property name="args.gen.task.lbl" value="no"/>
        	<!-- set related links to nofamily -->
        	<property name="args.rellinks" value="nofamily"/>
        	<!-- output directory location -->
        	<property name="output.dir" value="${ditaoutputpdf.dir}"/>
    	</ant>
    	<!-- Copy pdf output file to the Eclipse Inforcenter plugins pdf folder -->
    	<copy file="${ditaoutputpdf.dir}\${ditapdffilename}" todir="${ditainfocenter.dir}\${plugindirname}\pdfs" overwrite="true"/>
	</target>

	<!-- good epub build script -->
	<target name="epub" description="build epub">
		<ant antfile="${dita.dir}\build.xml">
			<!-- set the build type to eclipsehelp -->
			<property name="transtype" value="epub"/>
			<!-- set the ditamap file to use -->
			<property name="args.input" value="${ditamap.dir}\${ditamapfile}"/>
			<!-- set the conditional text settings file to use -->
			<property name="dita.input.valfile" value="${ditaval.dir}\${ditavalfileepub}"/>
			<!-- set the footer file to use -->
			<property name="args.ftr" value="${ditacss.dir}\${ditafooterfile}"/>
			<!-- set the css file and path statements -->
			<property name="args.css" value="${ditacssfileepub}"/>
			<property name="args.cssroot" value="${ditacss.dir}"/>
			<!-- set create index file to yes -->
			<property name="args.indexshow" value="YES"/>
			<!-- set output directory location -->
			<property name="output.dir" value="${ditaoutputepub.dir}\${plugindirname}"/>
			<!-- set cover artwork -->
			<property name="cover.graphic.file" value="${epubcovergrahpicfile}"/>
			<!-- set TestDoc url -->
			<property name="epub.pubid.uri.stub" value="http://www.TestDoc.com/"/>
			<!-- clear out temp location -->
			<property name="clean.temp" value="yes"/>
		</ant>
		<!-- Add apple ibooks option file to epub -->
		<move file="${ditaoutputepub.dir}\${plugindirname}\${ditaepubfilename}.epub" tofile="${ditaoutputepub.dir}\${plugindirname}\${ditaepubfilename}.zip"/>
		<unzip src="${ditaoutputepub.dir}\${plugindirname}\${ditaepubfilename}.zip" dest="${ditaoutputepub.dir}\${plugindirname}\${plugindirname}\"/>
		<copy file="${ditacss.dir}\com.apple.ibooks.display-options.xml" todir="${ditaoutputepub.dir}\${plugindirname}\${plugindirname}\META-INF\" overwrite="true"/>
		<zip destfile="${ditaoutputepub.dir}\${plugindirname}\${plugindirname}\${ditaepubfilename}.epub" basedir="${ditaoutputepub.dir}\${plugindirname}\${plugindirname}\" excludes="dont*.*"/>
		<!-- Copy epub output file to the Eclipse Inforcenter plugins epub folder -->
		<copy file="${ditaoutputepub.dir}\${plugindirname}\${plugindirname}\${ditaepubfilename}.epub" todir="${ditainfocenter.dir}\${plugindirname}\epub" overwrite="true"/>
	</target>

	</project>
